Bearing Failure Analysis: Causes, Symptoms, and Prevention

Introduction

Bearings play a crucial role in machinery, enabling smooth rotation while minimizing friction. However, bearing failures are a common issue that can lead to costly repairs and equipment downtime. This comprehensive guide covers bearing failure analysis, its common causes, symptoms, and the best ways to prevent premature bearing damage.

Types of Bearing Failures

Bearing failures can be categorized into two major groups:

1. Material Fatigue Failures
2. Wear and External Damage

1. Material Fatigue Failures

Material fatigue occurs when a bearing undergoes repeated stress cycles, leading to structural deterioration over time.

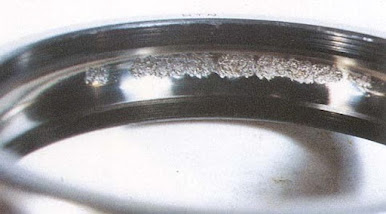

Spalling: The Most Common Bearing Failure

• Cause: Continuous rolling contact fatigue leads to micro-cracks and material flaking.
• Symptoms: Pitting, surface peeling, and rough bearing raceways.
• Prevention: Proper load distribution, high-quality materials, and optimal lubrication.

Inclusion Origin Spalling

• Cause: Internal material defects act as weak points under stress.
• Symptoms: Subsurface cracks and premature fatigue failure.
• Prevention: Using high-quality steel and precision manufacturing processes.

Point Surface Origin (PSO) Spalling

• Cause: Contaminants or raised metal breaking through the lubricant film.
• Symptoms: Isolated pitting and surface damage.
• Prevention: Implementing proper sealing solutions and contamination control.

Geometric Stress Concentration (GSC) Spalling

• Cause: Misalignment, deflection, or excessive loading.
• Symptoms: Large spalled areas on rolling elements.
• Prevention: Proper mounting, alignment checks, and regular maintenance.

2. Wear and External Damage

Wear and contamination significantly impact bearing lifespan and performance.

Bearing Contamination Failures

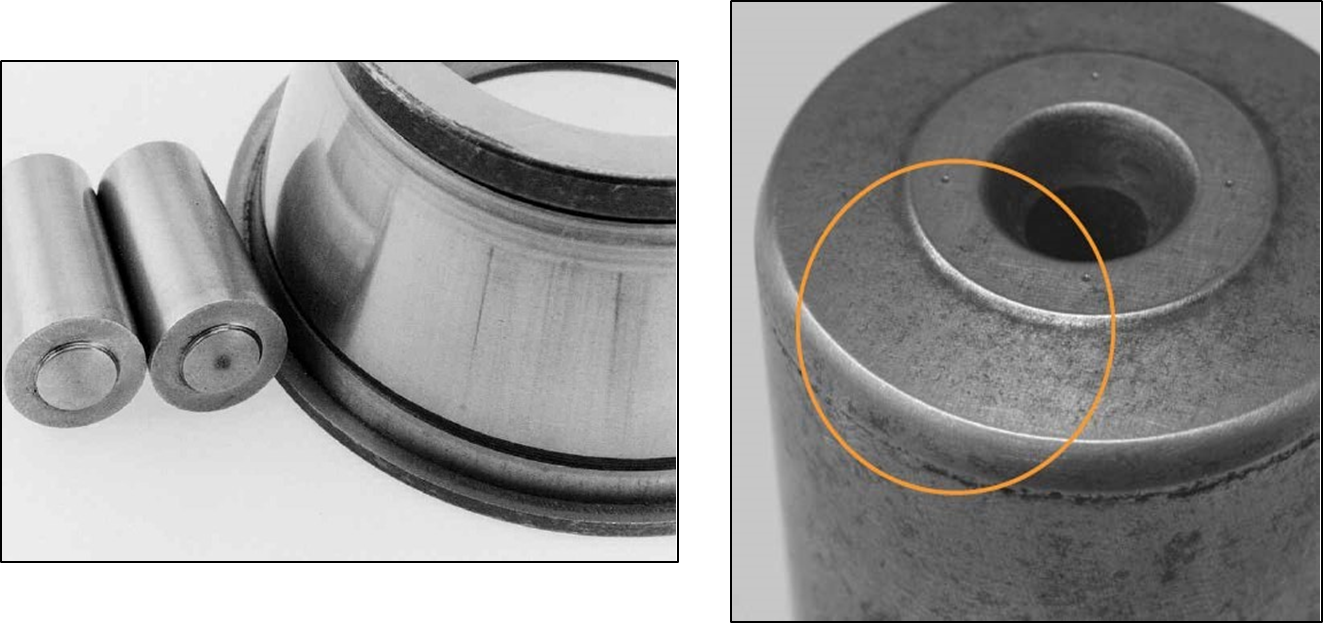

Tapered roller bearing abrasive wear                     Spherical roller bearing fine
                                                                                                particle contamination


Abrasive Wear

• Cause: Dirt, dust, or metallic particles contaminating the lubrication system.
• Symptoms: Scratched raceways and increased friction.
• Prevention: Using high-quality lubricants, effective sealing, and regular cleaning.

                        Cylindrical roller bearing                    Contamination bruising from outer                                                                                                                ring bruising  hard particles in spherical

Bruising and Denting

• Cause: Hard particle contamination or improper handling.
• Symptoms: Localized pitting or dents on rolling elements.
• Prevention: Clean storage, careful installation, and debris-free lubrication.




                          Etching and corrosion on                     Advanced corrosion and pitting on the cone race and

                  cylindrical roller bearing inner ring                                                       rollers

Etching and Corrosion

• Cause: Moisture exposure, chemical contamination, or improper storage.
• Symptoms: Rust formation, discolored raceways, and rough bearing surfaces.
• Prevention: Rust-preventative coatings, moisture control, and dry storage conditions.

Lubrication-Related Bearing Failures

Microspalling (peeling) due to thin film from high load/low RPM or high temperatures

Peeling and Scoring

• Cause: Lack of adequate lubrication film between surfaces.
• Symptoms: Micro-spalling, surface roughness, and high-temperature discoloration.
• Prevention: Using synthetic or high-viscosity lubricants based on load conditions.

Smearing and Heat Damage

• Cause: Metal-to-metal contact due to lubrication breakdown.
• Symptoms: Burn marks, excessive heat discoloration, and deformed surfaces.
• Prevention: Regular oil analysis, proper viscosity selection, and correct lubrication intervals.

False Brinelling: A Hidden Threat

• Cause: Vibration and oscillation in non-operational bearings.
• Symptoms: Wear marks resembling impact dents.
• Prevention: Pre-lubrication techniques and vibration-resistant mounting methods.

Bearing Overload and Misuse Failures

Excessive Preload or Overload

• Cause: Improper installation or extreme operating conditions.
• Symptoms: Roller fractures, surface fatigue, and excessive heat generation.
• Prevention: Precision bearing installation and monitoring load capacities.

True Brinelling

• Cause: High static loads causing permanent deformations.
• Symptoms: Permanent indents corresponding to rolling elements.
• Prevention: Avoiding shock loads and excessive static force applications.

Electrical Damage: A Silent Bearing Killer

• Cause: Electrical arcing or improper grounding.
• Symptoms: Pitting, fluting, or axial burns on rolling elements.
• Prevention: Using insulated bearings and proper grounding in electrical applications.

Best Practices for Bearing Failure Prevention

To extend bearing service life and avoid costly breakdowns, follow these best practices:

• Choose the right bearing for your application based on speed, load, and environmental conditions.
• Ensure proper handling and installation to prevent early damage.
• Use the correct lubricant and maintain adequate lubrication at all times.
• Implement contamination control measures such as high-quality seals and filtration systems.
• Monitor bearing performance regularly using vibration analysis and thermal monitoring.

By following these preventive strategies, you can significantly reduce downtime, lower maintenance costs, and improve machinery efficiency.

---

Optimizing your bearing selection, lubrication, and maintenance procedures is key to preventing premature bearing failure and enhancing operational reliability. Share this guide to help others maximize bearing life in industrial applications!
